ARC Rocketry Team

CAD Model Showcase

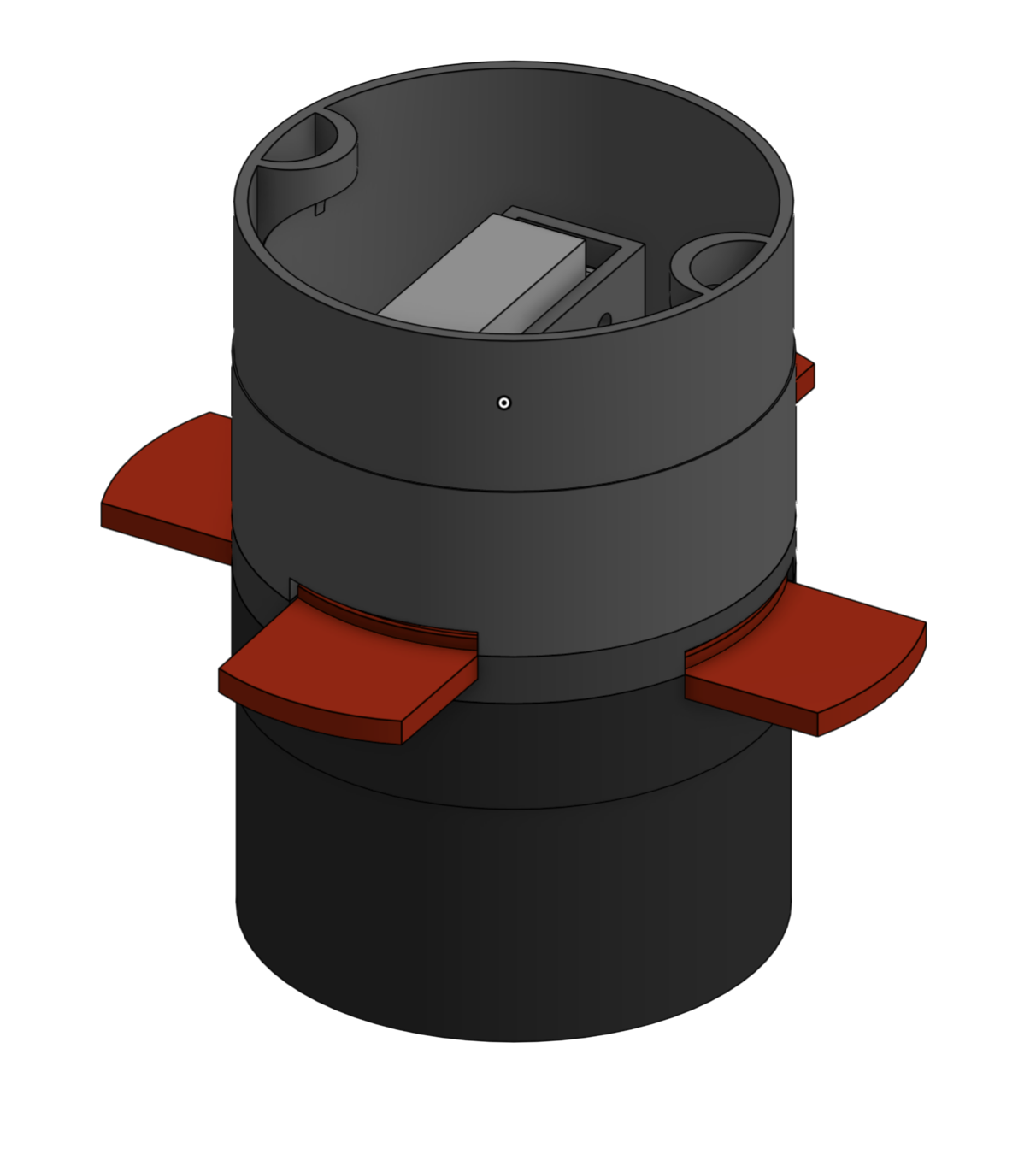

Airbrakes CAD model

Airbrakes

Complete rocket assembly for competition. Dual-deployment recovery system.

Length (Outer): 1.75" Length (Inner): 3.80" Weight: ~110 g
Fin Can CAD model

Fin Can

Dual-deployment parachute system with drogue and main chutes.

Fins: 4 Material: PLA Plastic Mass: 52 g
Fin Aligner CAD model

Fin Aligner

Used to precisely cut slots for our fin can.

Count: 4 fins Material: PLA Plastic
